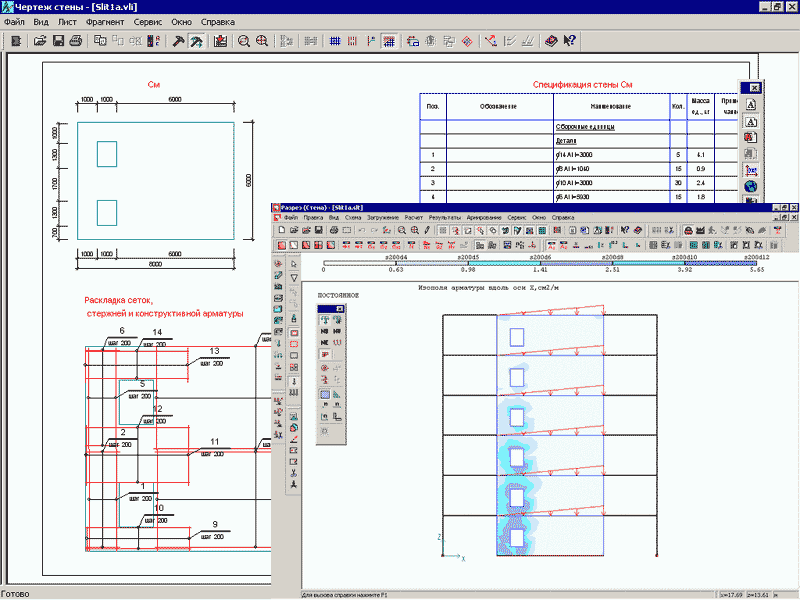

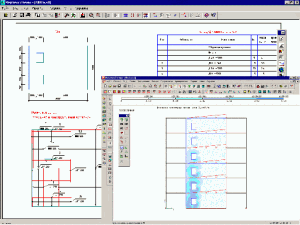

DIAPHRAGM module

DIAPHRAGM module enables you:
  •  to import design model from BUILDING module or generate it in stand-alone mode. Variable thickness of the wall and specified holes are taken into account;
  •  to obtain deformed shape of the model;
  •  to obtain contour plots of displacements and stresses for elements of the wall, diagrams of design forces for bar elements;
  •  to export data to BEAM and COLUMN modules;
  •  to export design model to LIRA software;
  •  to analyse wall according to ultimate limit states and serviceability limit states;
  •  to determine necessary reinforcement;
  •  to obtain contour plots of design reinforcement;
  •  to use reinforcing cages and reinforcing bars for the wall;
  •  to arrange reinforcement and draw the wall.
